Overview:

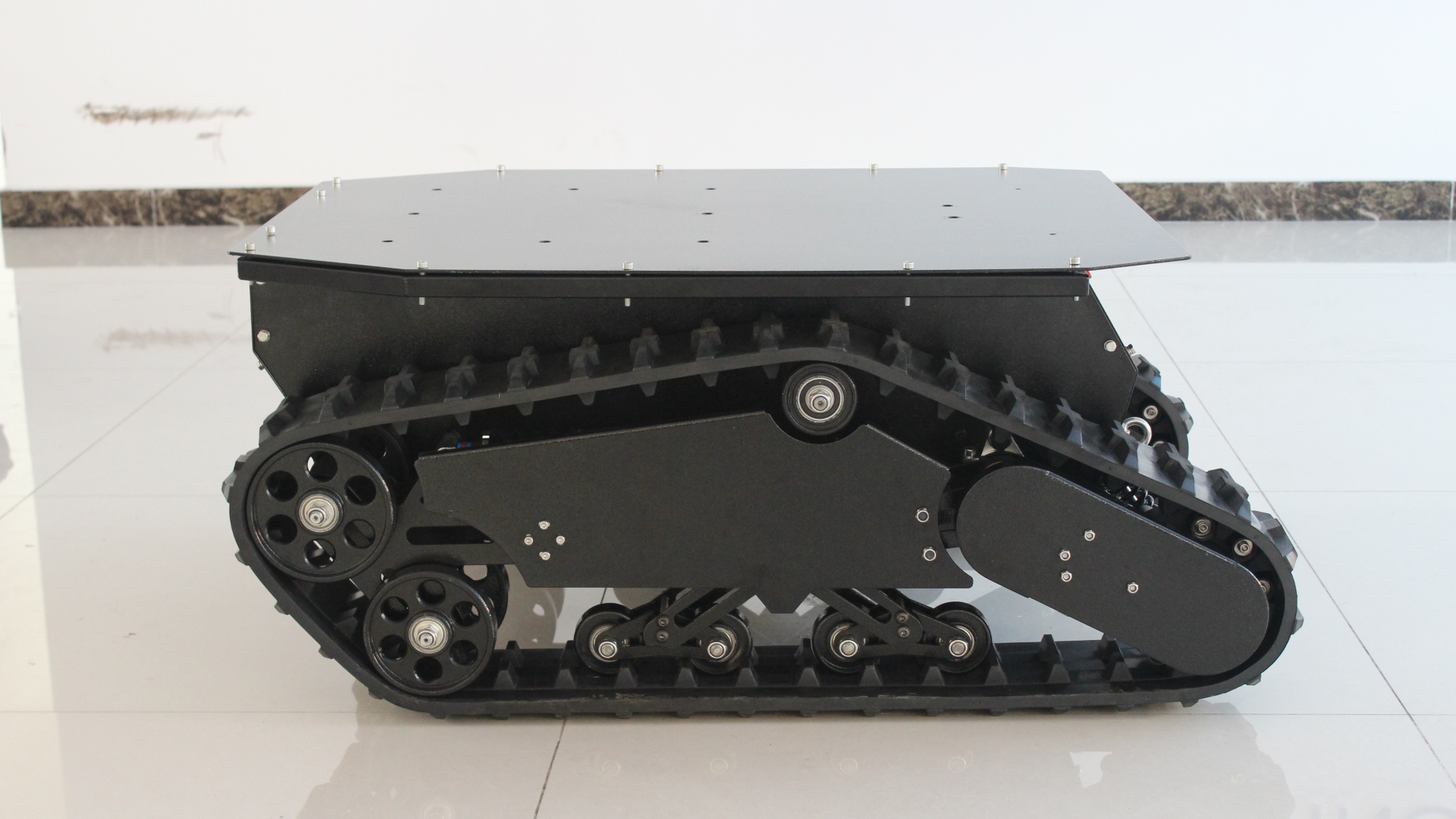

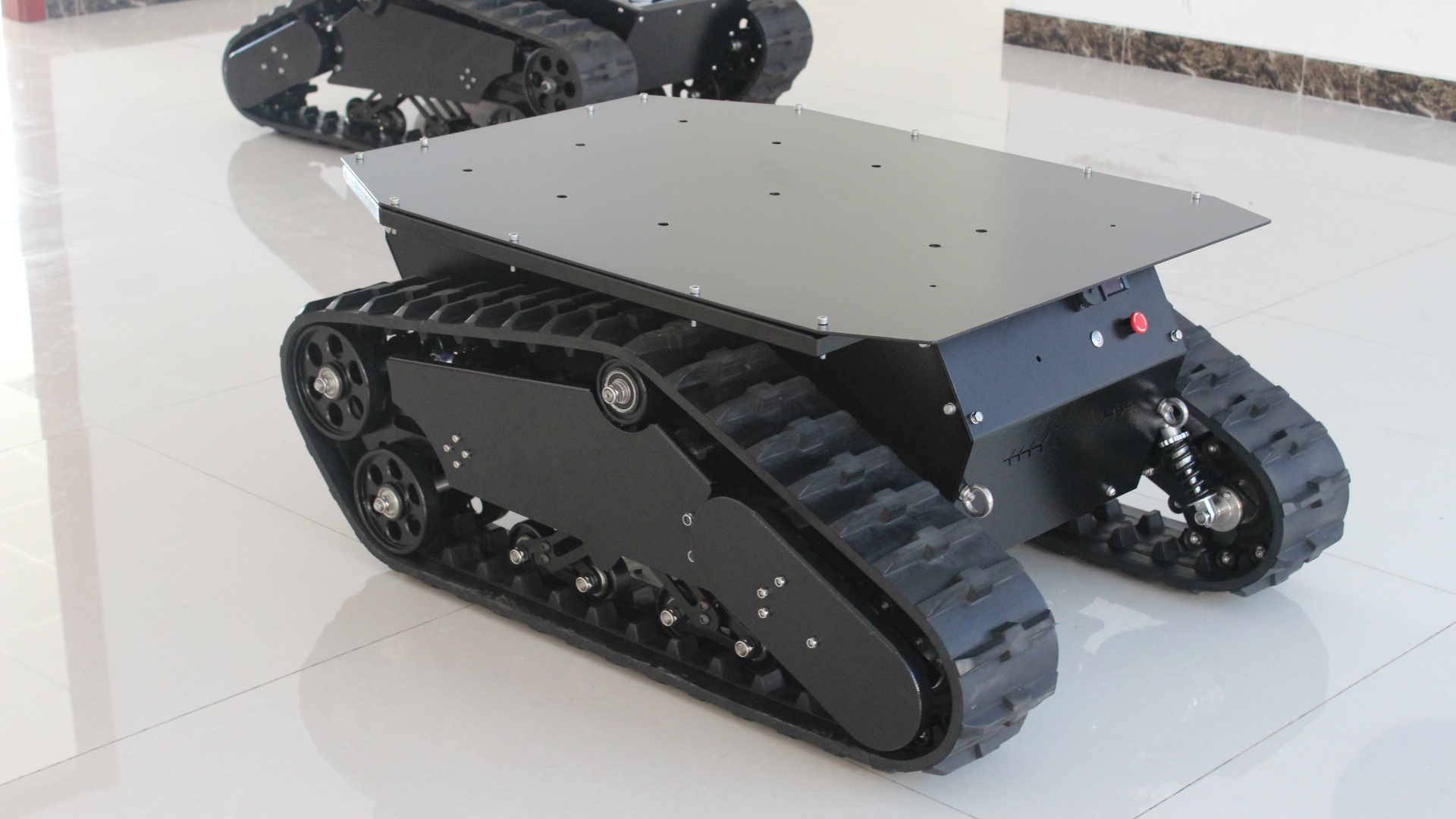

Best among other chassis of excellent level and striving to pursue higher across obstacle and off-road capacity, Safari-880T can weight up to 100kg, equipped with Christie and Mathilda four-wheel balance suspension with heavy load and vibration reduction. It is installed 6 vibration absorbers on the whole body with unique design of reduce vibration and absorbing energy for terrain impact. The products can be widely used for robot movement solutions in complex environment.
Product Character:
The support area is very large, and percentage that 150mm crawler belt contacting ground reaches up to 75%. That's why it is suitable for complex environment for soft and muddy ground, excellent offer-road mobility with lower sinking degree and rolling obstacle resistance.
Small turning radius, could realise pivot steering.
The crawler grousers on the tracked belt are non-slip, excellent traction and adhesion capacity helps to exert greater traction pull.
The chassis is higher than 140mm with excellent climbing slope, stairs and across obstacle capacity. The robot body is made of 304 stainless steel, which is solid and durable with outstanding protective property. It is popular with our many customers.
Main function:
Mainly applied for detecting, exploration, rescue operation, camera etc function of Robot Chassis.
Function Development
Applied for patrol exploration、EOD explosive、Special camera and fire-fighting transportation etc. Special robot development.
Specifications:
| Item | Specification | |
|---|---|---|
| Motor | 48V brushless DC motor | |
| Working temperature | -20℃~60℃ | |
| suspension system | Christie suspension+ Mathilda four wheel balance suspension | |
| rate power | 880W*2 | |
| rate torque | 82NM | |
| Operating Velocity | 0~1.6m/s | |
| Max obstacle-surmounting | 200mm | |
| Max angle of climbing | 40 degree ( climbing stairs) | |
| vibration reduction | *6 shocker absorbers on right and left | |
| remote distance | plain 300M | |
| endurance capacity | 2h | |
| remote function | right rocker can control the movable chassis | |
| dimension | external dimension | 1020*730*440mm |
| interior dimension | 600*320*240mm | |
| chassis height | 125mm | |
| tracked width | 150mm | |
| grounding length | 740mm | |
| weight | self weight | 120kg |
| loading weight | 100kg | |
| material | wheel | aluminuium |
| body | stainless steel | |
| tracked belt | quality rubber emmbedded with Kevlar fiber | |
| treatment surface | spray plastic/ partial painting | |
| battery | type | lithium battery |
| capacity | 30AH | |
| voltage | 48V | |
