iMars 138T

Overview:

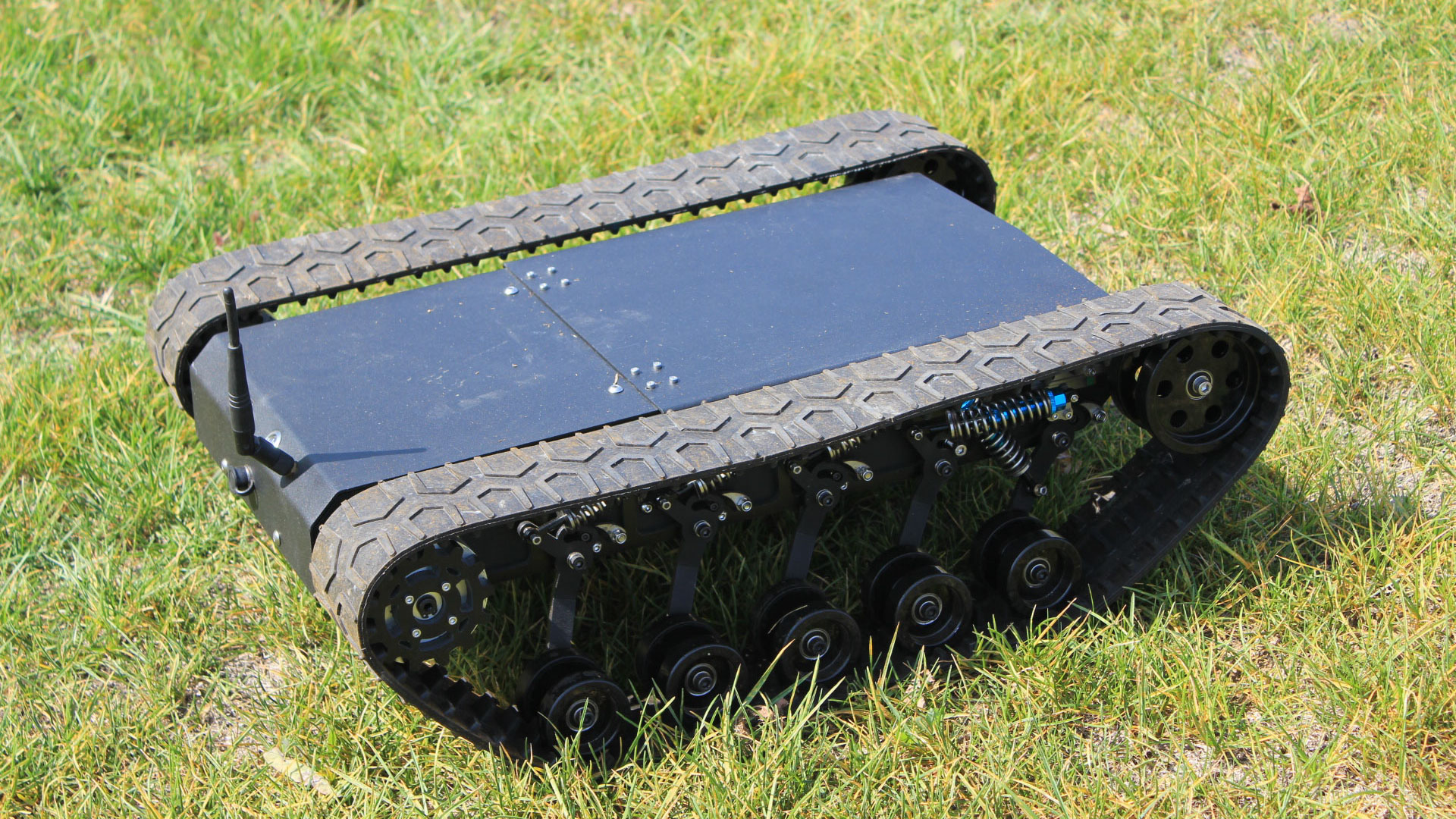

Large space with more stable travel. This tracked chassis is design with independent Chrisitie Suspension, which can help reduce vibration at the time if heavy load. Its interior is equipped with high torque brushless DC gear motor, enable the chassis strong and powerful to surmount any obstacles. The accurate height of chassis, combined with motors of appropriate power, which give the tracked chassis many advantages including gravitational center, outstanding obstacle-surmounting properties, vibration reduction for heavy load and stable operation. That’s why it can be applied to many complex robot movement solutions.

Equipped with 880W brushless DC gear motor with strong power, the chassis height is over than 90mm, which is able to surmount any obstacles with heavy loading and climbing stairs.

Small turning radius can help realize pivot steering.

The crawler grousers on the tracked belt are non-slip, excellent traction and adhesive performance, independent suspension design enable the chassis with more stable travel.

Large interior space makes it possible to load more equipment.

Outstanding obstacle -surmounting supporting development and customization of non-standard products.

Main functions:

Applied for detecting、rescue、exploratory,photograph etc

Robot Chassis.

Function development

Especially applied for patrol exploration, rescue explosion, taking photograph, special transportation of Robot development, which provide robot movement solutions.

Specifications:
Item Specification
Motor 48V brushless DC motor
Working temperature -20℃~60℃
suspension system christie suspension
rate power 650W*2
rate torque 60NM
Operating Velocity 0~1.4m/s
Max obstacle-surmounting 200mm
Max angle of climbing 40 degree ( climbing stairs)
vibration reduction *6 independent vibration absorbers on right and left
remote distance plain 300M
endurance capacity 2h
remote function right-hand rocker control the movable chassis
dimension outline dimension 1000*750*360mm
interior dimension 790*310*240mm
chassis height 100mm
tracked width 150mm
grounding length 540mm
weight self weight 96kg
loading weight 75kg
material wheel aluminuium
body stainless steel
tracked belt quality rubber emmbedded with Kevlar fiber
treatment surface spray plastic/ partial painting
battery grade lithium battery
capacity 30AH
voltage 48V
